H543E
-
Product Features
UMTS, LTE Band
PCB Soldering Re-flow
Wide Operation Temperature Range -40 ~ 85℃
Compact Package Design for PCB Applications -

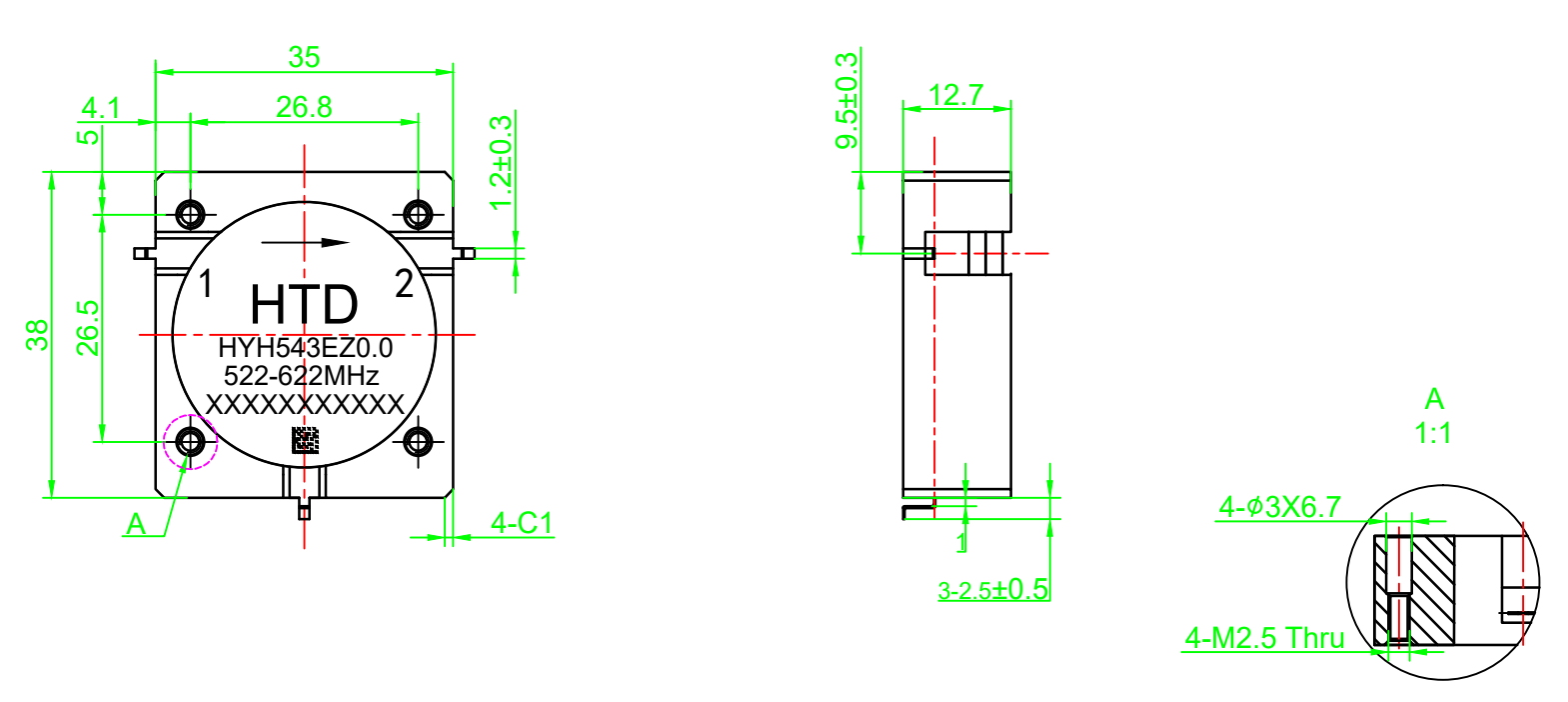

Size Display
-
Specification Parameters
Model
Frequency（GHz）
F1Frequency（GHz）
F2Center Frequency
(GHz)Bandwidth
（GHz）Isolation
（dB）MININS LOSS
（dB）MAXenVSWR
MAXPower
(W)IMD
(@2X43dBm)
(-dBc)MAXH543E [698-940]MHz 0.698 0.940 0.8190 0.242 18 0.4 1.28 100 - H543E [500-650]MHz 0.500 0.650 0.5750 0.150 18 0.45 1.28 100 - H543E [470-570]MHz 0.470 0.570 0.5200 0.100 20 0.4 1.2 200 - H543E [400-430]MHz 0.400 0.430 0.4250 0.030 22 0.25 1.17 200 - H543E [330-350]MHz 0.330 0.350 0.340 0.020 20 0.45 1.22 100 -
